Automatic On-Board Battery Charger
The Automatic On-Board 12V 1.5-Amp Battery Charger features float mode for maintaining optimal battery charge.
12 Volt - 1.5 Amp
Automatic On-Board Battery Charger with Float Mode
OB1
119 x 73 x 32 mm
0.5 kg
AC Input:
Input Voltage: 120 VAC, 50/60 Hz
Single Phase
DC Output:
Output Voltage - Nominal: 12 VDC
Output Voltage - Bulk / Cyclic 6V/12V: 14.6 VDC
Float Voltage 6V/12V: 13.2 VDC
Max DC Current: 1500mA (1.5 Amp)
Battery Type: Lead Acid: Standard, AGM, Gel
3 Stage Charging Profile: CC/CV/Float
Features

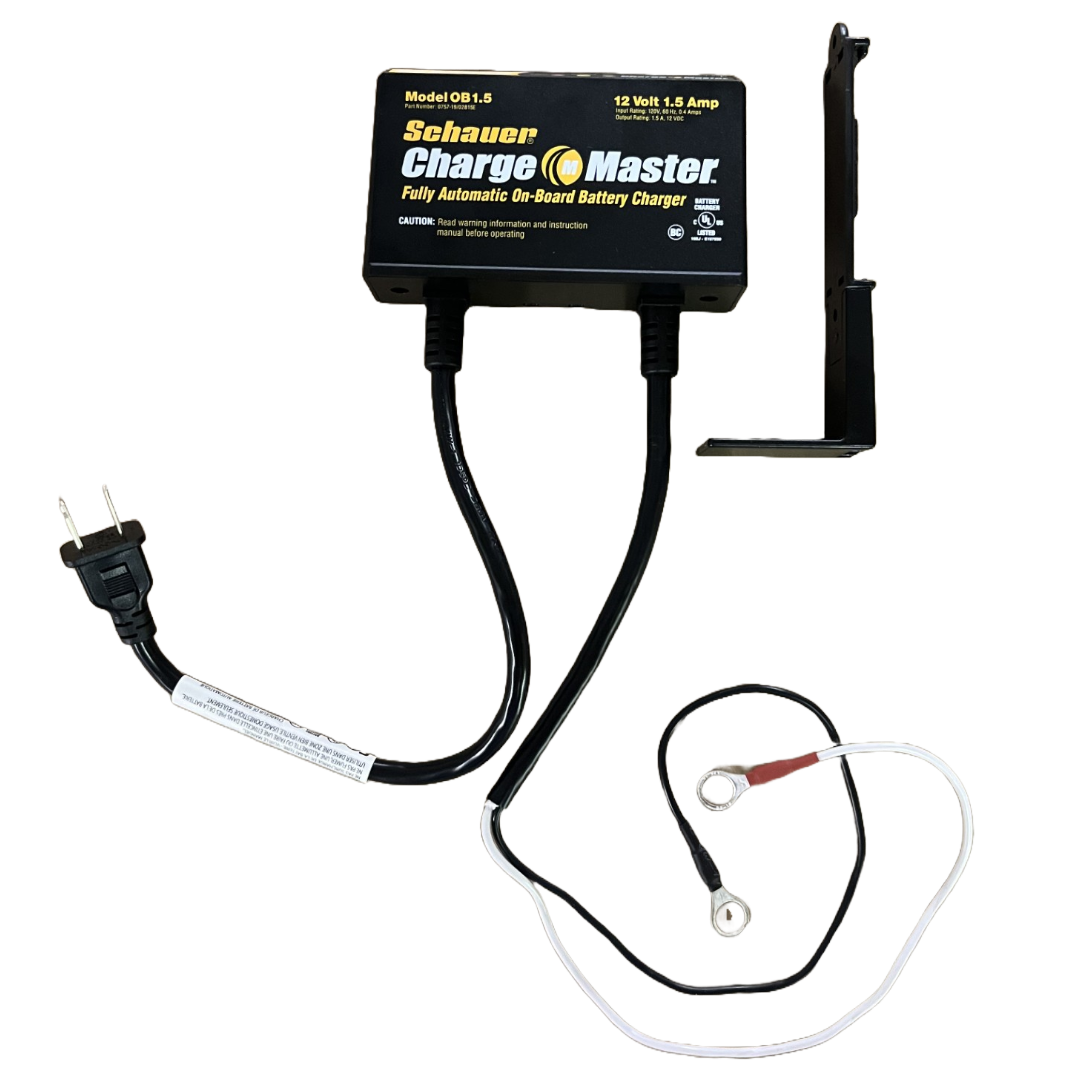

AC Cord 12″
DC Cord 16″
Ring Eyelets
On-Board – Mounting Bracket (Incl.)
Weather Resistant
Reverse Polarity Protection
High Energy Efficiency (UEC, BC)
Voltage Limited
Current Limited
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Final Float / Maintenance Mode
Ambient Cooling
Two-year Limited Warranty

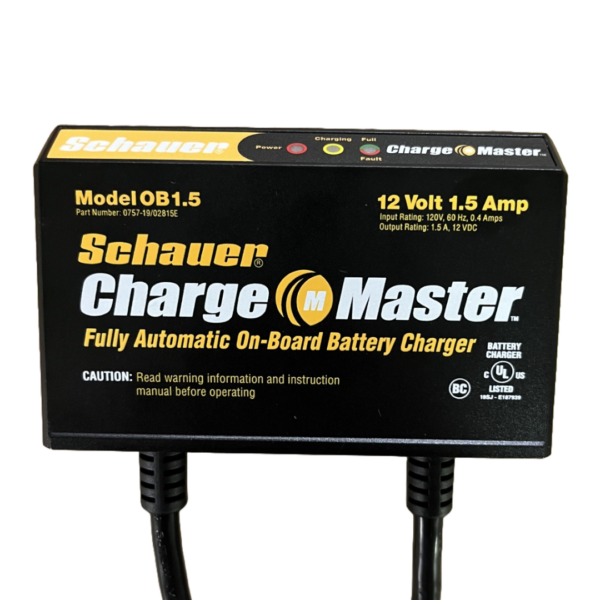

LED Lights
Left – Red: AC Power On
Middle – Yellow: Charging
Right – Green: Full Charge / Float Mode
Right – Red: Fault
Certifications
Safety – CE
DOE UEC Title 20, 10 CR, Part 430
California BC Energy Efficiency Compliant
Warning
This product can expose you to chemicals, including Lead and Lead Compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Customizations
Contact Schauer Battery Chargers
Charge Profile Customization Available
Constant Load Customization Available
