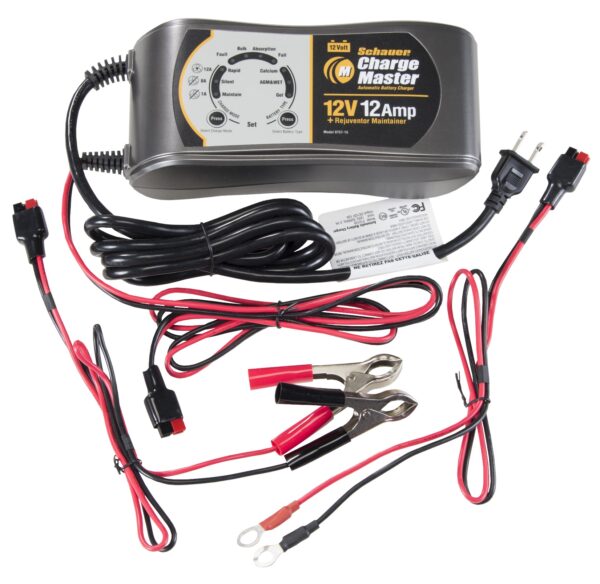

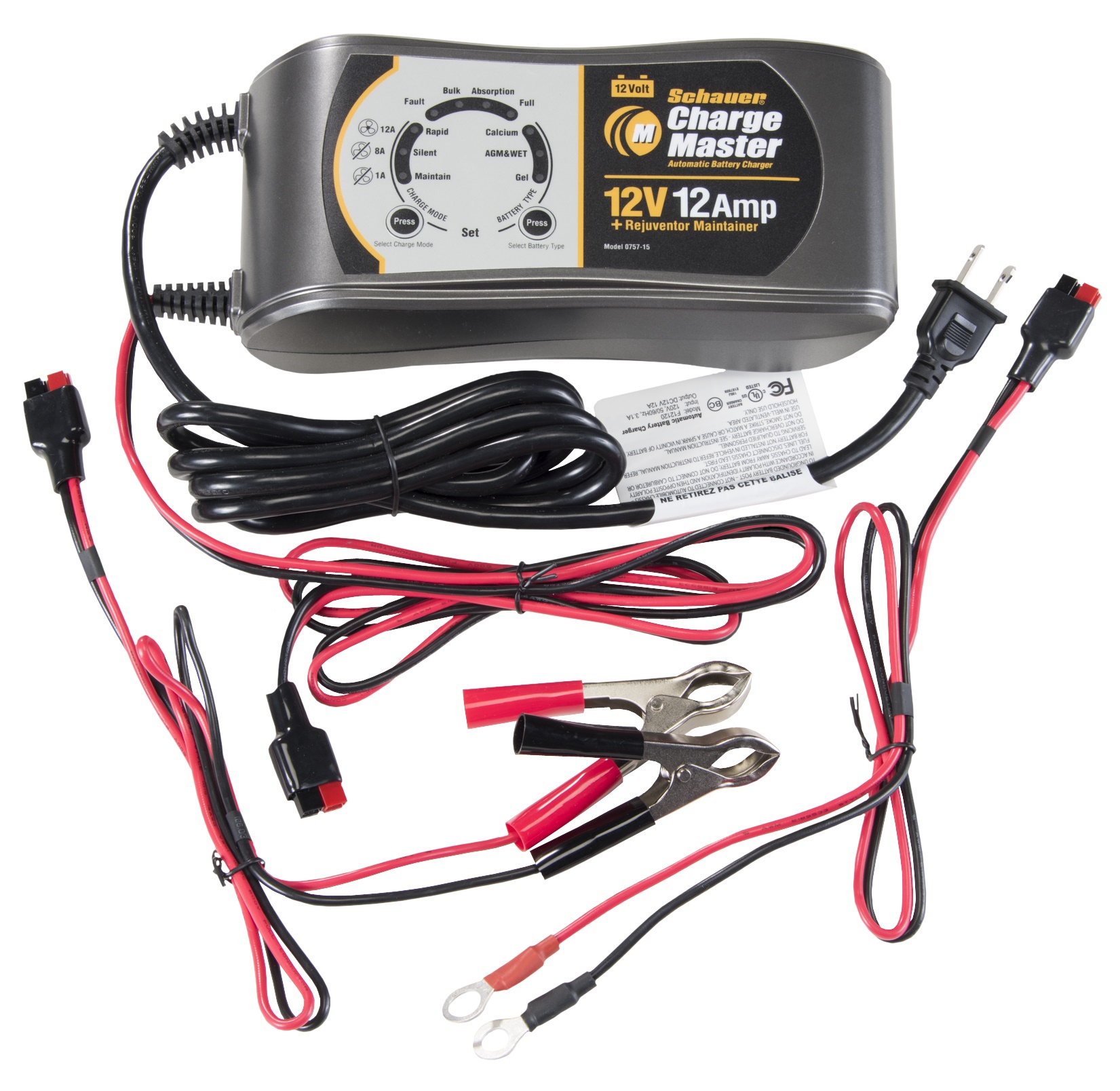

CM12A – 12V – 1, 8 & 12A Charger
The Charge Master CM12A 6/12v – 1, 8 & 12 Amp Battery Charger is an smart charger with float mode.
12 Volt - 1, 8 & 12 Amp
Automatic Smart Charger with Float Mode
CM12A (Ring Eyelets & Battery Clips)
7.44"L x 3.86"W x 2"H
1.65lbs
AC Input:
Input Voltage: 100 - 120 VAC, 50/60 Hz
Single Phase
DC Output:
Output Voltage - Nominal: 12 VDC
Output Voltage - Calcium: 14.7 VDC
Output Voltage - AGM & Wet: 14.4 VDC
Float Voltage: 13.2 VDC
Selectable DC Current: 1, 8 or 12 Amps
Battery Type: Lead Acid: Standard, AGM, Gel
8 Stage Charging Profile: CC/CV/Float
Features
Ring Eyelet & Battery Clip DC Connectors
Reverse Polarity Protection
High Energy Efficiency – ECO Mode
Voltage Limited
Current Limited
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Final Float / Maintenance Mode
Charge Current Selection (1, 8 or 12 Amps)
Battery Type Selection (Calcium, AGM/Wet, Gel)
Ambient Cooling @ 1 & 8 Amp, Fan @ 12 Amps
Two-year Limited Warranty
LED Lights
Fault: Red
Bulk Charge: Blue
Absorption: Green
Full Charge / Float: Green
Certifications
Safety – CE
DOE UEC Title 20, 10 CR, Part 430
California BC Energy Efficiency Compliant
Warning
This product can expose you to chemicals, including Lead and Lead Compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Customizations
Contact Schauer Battery Chargers
Charge Profile Customization Available
Constant Load Customization Available
