CM1A 6/12 V – 1A Charger
The Charge Master CM1A 6/12v – 1 Amp Battery Charger is an automatic switch mode charger with float mode.
6 / 12 Volt - 1 Amp
Automatic Switch Mode Charger with Float Mode

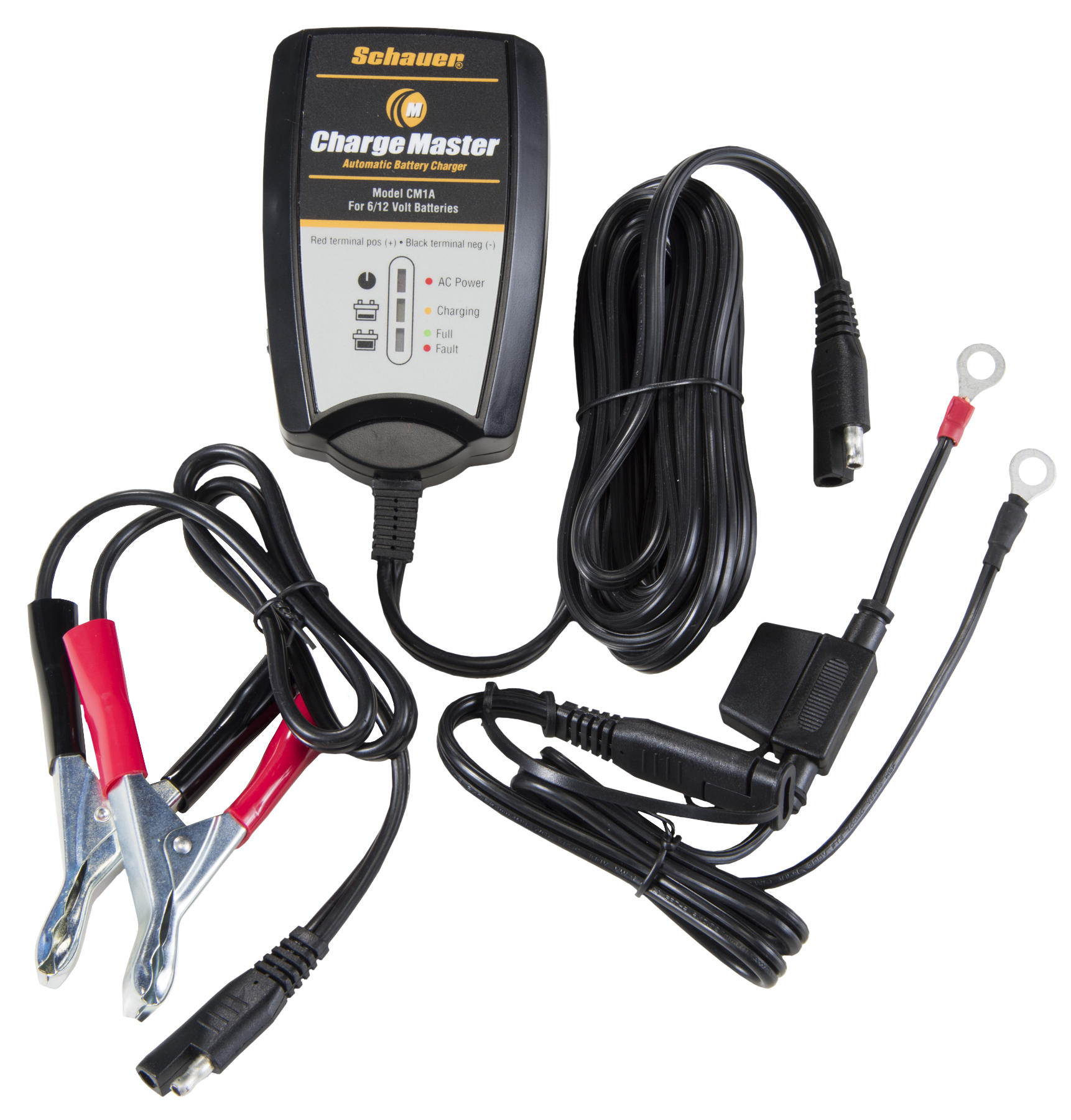

CM1A (Ring Eyelets & Battery Clips)
105 x 65 x 35 mm
0.5 kg
AC Input:
Input Voltage: 100 - 120 VAC, 50/60 Hz
Single Phase
DC Output:
Output Voltage - Nominal: 6 or 12 VDC
Output Voltage - Bulk / Cyclic: 7.2 / 14.4 VDC
Float Voltage: 6.6 / 13.2 VDC
Max DC Current: 1000mA (1 Amp)
Battery Type: Lead Acid: Standard, AGM, Gel
3 Stage Charging Profile: CC/CV/Float
Features
Cooling Fan
DC Cord 10 Ft.
Ring Eyelet & Battery Clip DC Connectors
Reverse Polarity Protection
High Energy Efficiency (UEC, BC)
Voltage Limited
Current Limited
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Final Float / Maintenance Mode
6V / 12V Switch
Ambient Cooling
Two-year Limited Warranty
LED Lights
Top – Red: AC Power On
Middle – Orange flashing rapidly: Battery Condition Check, Battery Rejuvenation, Soft Start
Middle – Orange Solid: Charging
Bottom – Green: Full Charge / Float Mode
Certifications
Safety – CE
DOE UEC Title 20, 10 CR, Part 430
California BC Energy Efficiency Compliant
Warning
This product can expose you to chemicals, including Lead and Lead Compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Customizations
Contact Schauer Battery Chargers
Charge Profile Customization Available
Constant Load Customization Available
