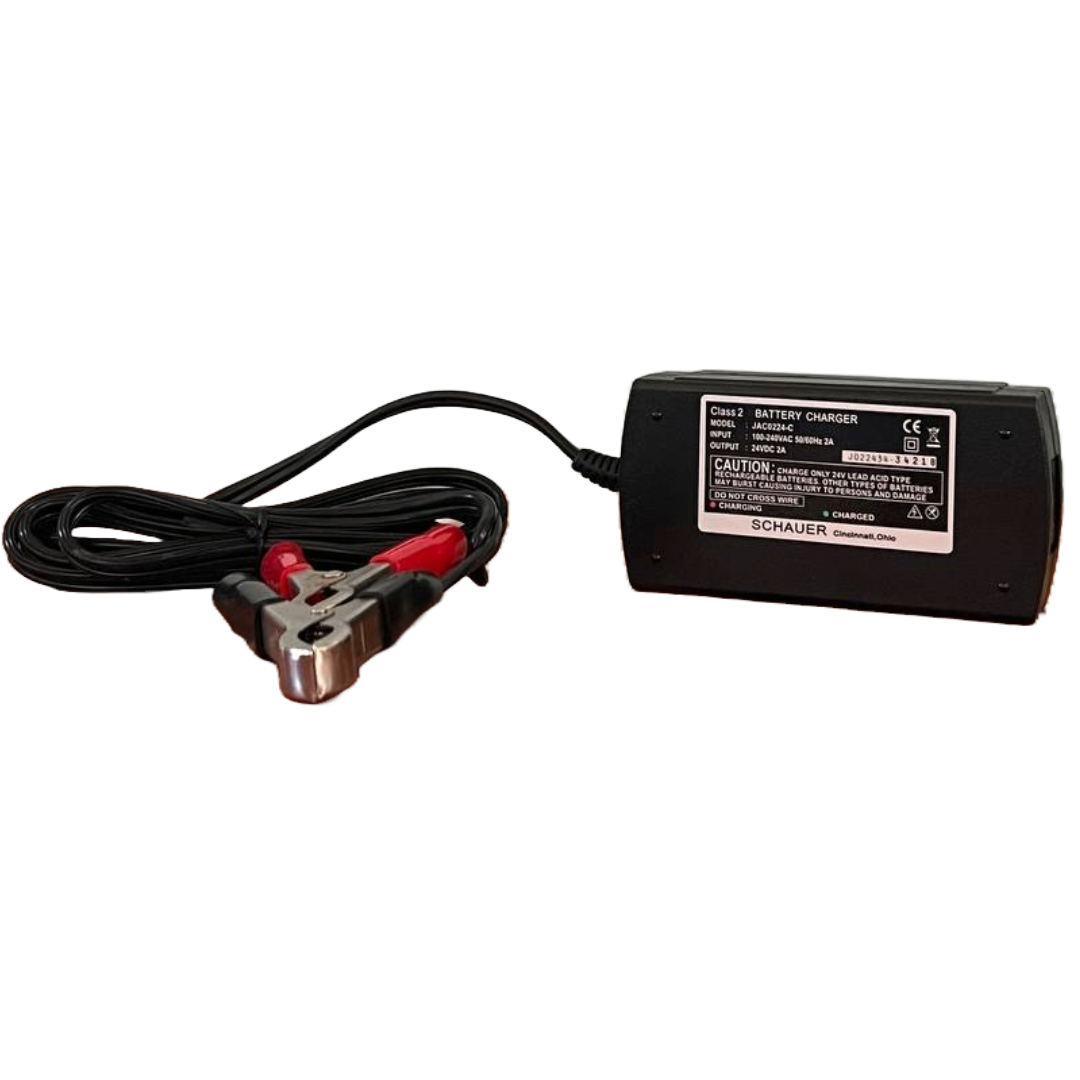

JAC0224-C 24V – 2A Charger
The JAC0224-C (0891-34) 24v – 2 Amp Battery Charger is an automatic switch mode charger with float mode.
24 Volt - 2 Amp
Automatic Switch Mode Charger with Float Mode
JAC0224-C
119 x 61 x 37 mm
0.5 kg
AC Input:
Input Voltage (Auto Sensing): 100 - 240 VAC, 50/60 Hz
Input Current Max: 1.6 Amps
Single Phase
Input Receptacle: IEC C8
DC Output:
Output Voltage - Nominal: 24 VDC
Output Voltage - Bulk / Cyclic Voltage: 29.2 VDC
Float Voltage: 26.5 VDC
Max DC Current: 2 Amps
Battery Type: Lead Acid
3 Stage Charging Profile: CC/CV/Float
Load Sensing, Minimum Voltage: 4 Volts
Features
Ambient Cooling
High Energy Efficiency (UEC, BC)
Voltage Limited
Current Limited
Over Voltage Protection
Over Temperature Protection
Final Float / Maintenance Mode
Plastic Case
Detachable AC Cord, 5 ft (NEMA 5-15/IEC C7)
Two-year Limited Warranty
Certifications
Safety – CE
DOE UEC Title 20, 10 CR, Part 430
California BC Energy Efficiency Complaint
Warning
This product can expose you to chemicals, including Lead and Lead Compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Customizations
Contact Schauer Battery Chargers
Charge Profile Customization Available
Constant Load Customization Available
