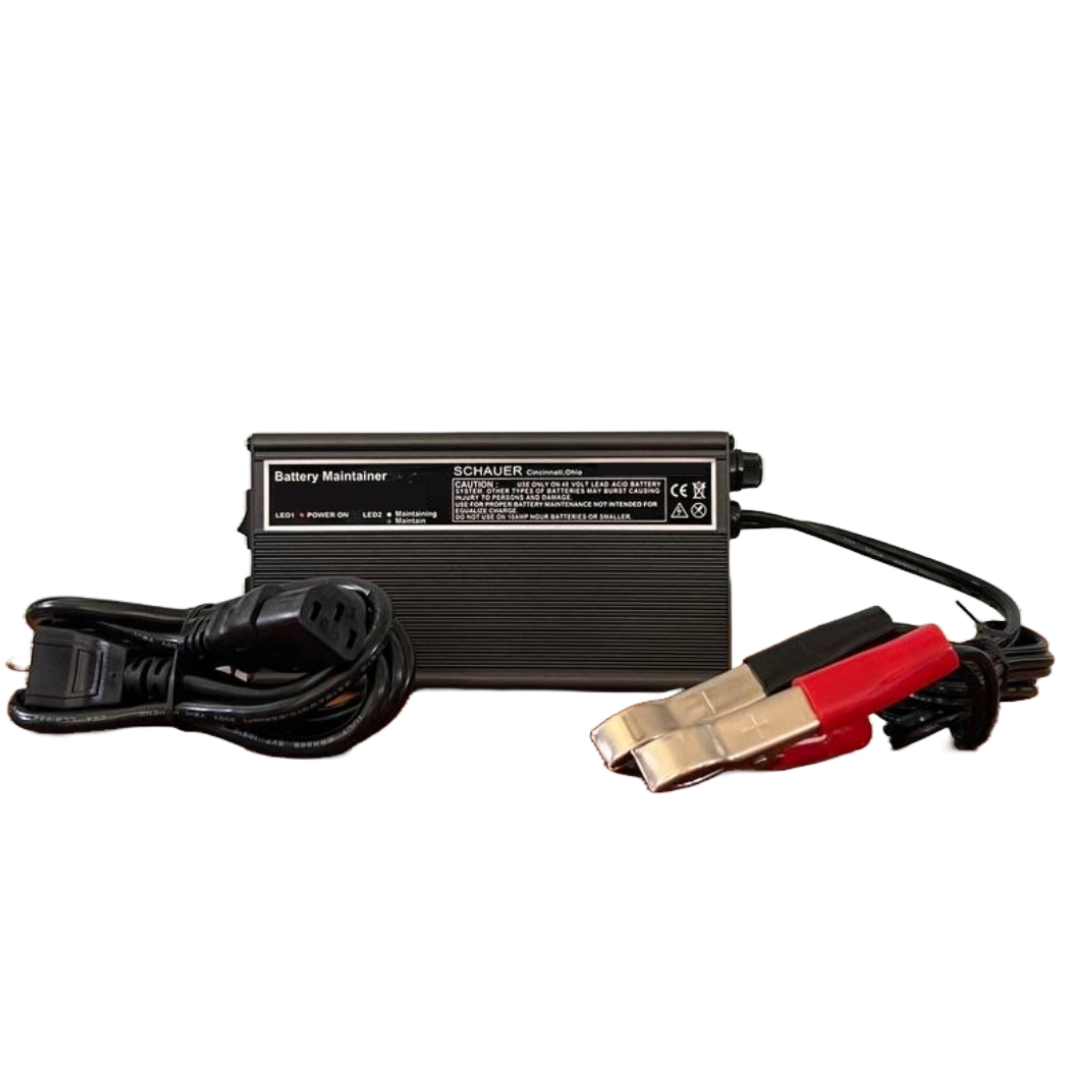

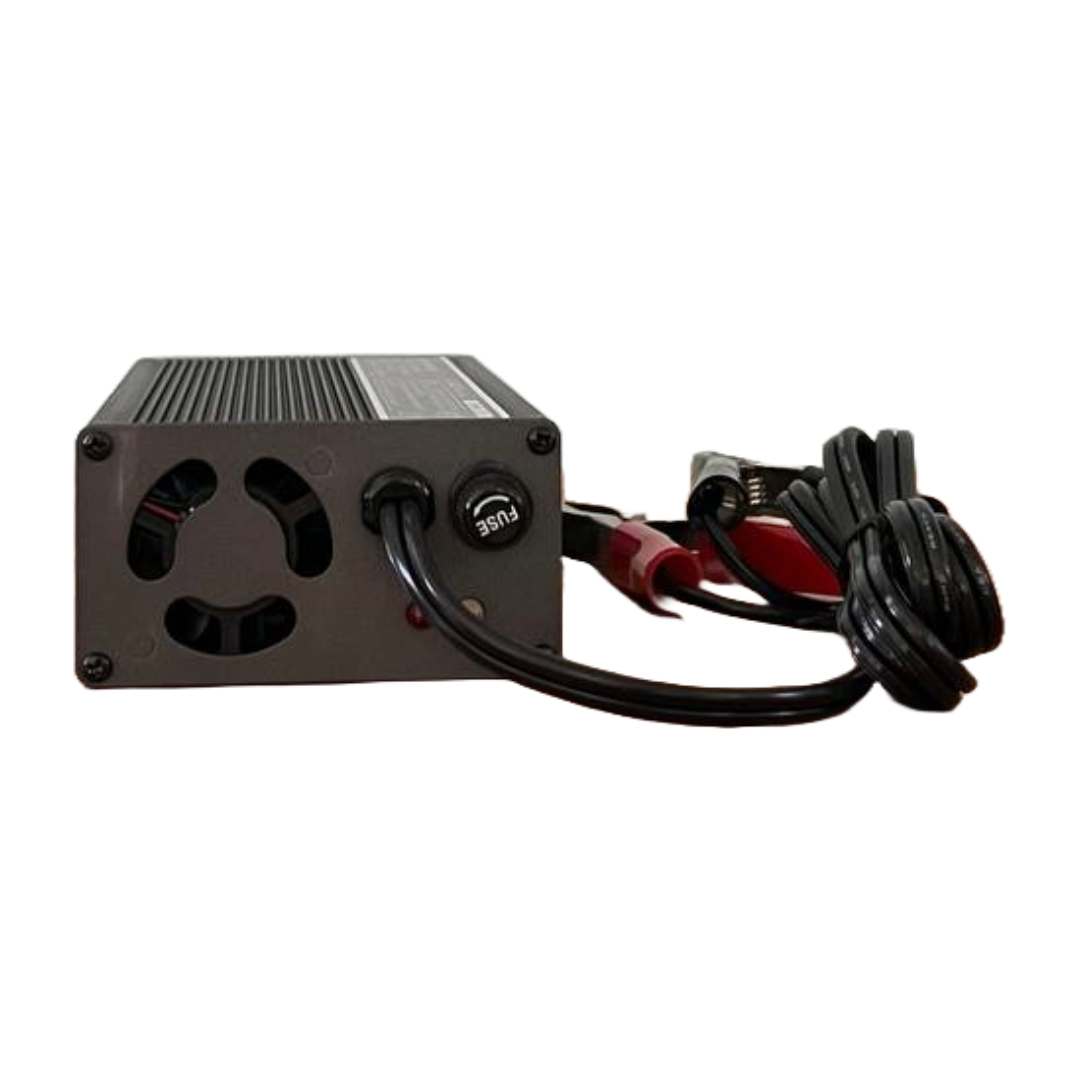

JAC0336MAN 36v – 3A Maintainer
The JAC0336MAN (0891-103) 36v – 3 Amp Battery maintainer with float mode.
36 Volt - 3 Amp
Battery Maintainer with Float Mode
JAC0336MAN
178 x 88 x 47 mm
0.8 kg
AC Input:
Input Voltage: 115 VAC, 50/60 Hz
Input Current Max: 2.5 Amps
Single Phase
Input Receptacle: IEC C14
DC Output:
Output Voltage - Nominal: 36 VDC
Output Voltage - Maintenance: 39.7 VDC
Max DC Current: 3 Amps
Battery Type: Lead Acid: Standard, AGM, Gel
Maintenance Profile: Constant Voltage
Features
Cooling Fan
Reverse Polarity Protection
High Energy Efficiency (UEC, BC)
Voltage Limited
Current Limited
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Aluminum Case
On / Off Switch
Detachable AC Cord, 5 ft (NEMA 5-15/IEC C13)
Two-year Limited Warranty
LED Lights
Left – Red: Power On
Right – Amber (Fan): Increase voltage to 39.6 VDC
Right – Green (Fan): Holding voltage at 39.6 VDC
Certifications
Safety – CE
DOE UEC Title 20, 10 CR, Part 430
California BC Energy Efficiency Compliant
Warning
This product can expose you to chemicals, including Lead and Lead Compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
