JAC0524-XLR 24V – 5A Charger
The JAC0524-XLR (0891-24) 24v – 5 Amp Battery Charger is an automatic switch mode charger with float mode.
24 Volt - 5 Amp
Automatic Switch Mode Charger with Float Mode
JAC0524-XLR
178 x 88 x 47 mm
0.8 kg
AC Input:
Input Voltage: 115 VAC, 50/60 Hz
Input Current Max: 3 Amps
Single Phase

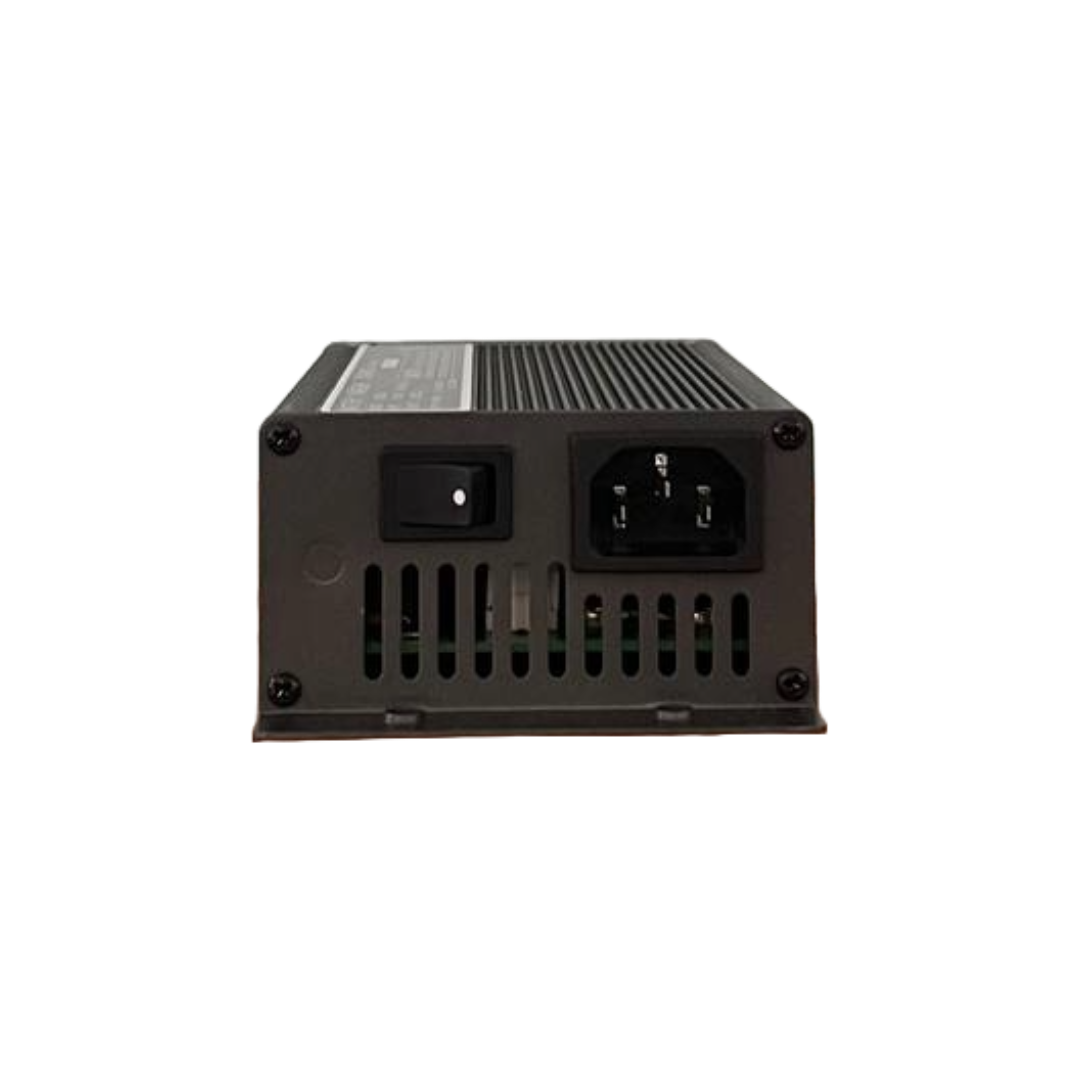

Input Receptacle: IEC C14
DC Output:
Output Voltage - Nominal: 24 VDC
Output Voltage - Bulk / Cyclic Voltage: 28.8 VDC
Float Voltage: 26.6 VDC
Max DC Current: 5 Amps
Battery Type: Lead Acid, AGM, Gel
3 Stage Charging Profile: CC/CV/Float
Load Sensing, Minimum Voltage: 8 Volts
Features
Cooling Fan
Reverse Polarity Protection
High Energy Efficiency (UEC, BC)
Voltage Limited
Current Limited
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Final Float / Maintenance Mode
Aluminum Case
Mounting Flanges
On / Off Switch
Detachable AC Cord, 5 ft (NEMA 5-15/IEC C13)
Two-year Limited Warranty

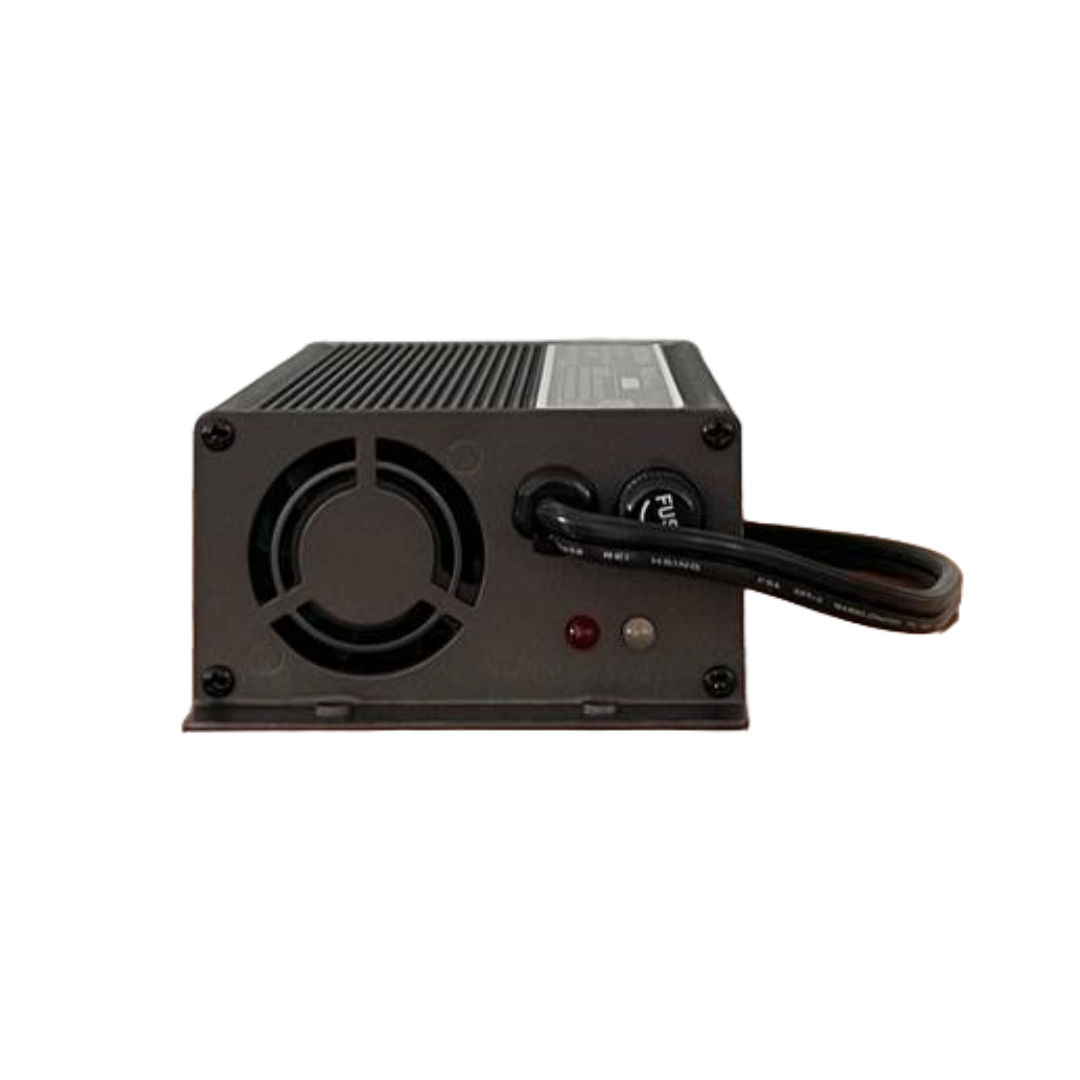

LED Lights:
Left – Red: Power On
Right- Amber (Fan): Charging
Right – Green (No Fan): Full Charge / Float Mode
Certifications
Safety – CE
DOE UEC Title 20, 10 CR, Part 430
California BC Energy Efficiency Compliant
Warning
This product can expose you to chemicals, including Lead and Lead Compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Customizations
Contact Schauer Battery Chargers
Can be converted to 230 VAC 50/60 Hz Operation
Charge Profile Customization Available
Constant Load Customization Available
